Getting data from the web

Matt Bhagat-Conway

Ways to get data from the web

From easiest to hardest
- Bulk downloads
- APIs
- Scraping

Bulk downloads

Just download a file
Often from an open data site/developer resources/etc.
You’ve probably done this at some point, and it’s pretty self explanatory

APIs

Application programming interface (but no one calls them that)
Structured way to interact with datasets hosted online
Usually designed for querying/extracting small amounts of data
- may need to cobble together multiple results

Packages for interacting with common APIs

FRED: fredr
US Census Bureau: tidycensus

REST APIs

The most common type of API nowadays is the REST API
- REpresentational State Transfer
The theory is that there are objects (e.g. data records) that you can retrieve information about

HTTP: example

This is me interacting directly with the en.wikipedia.org web server.

URL structure

https://linc.osbm.nc.gov/api/explore/v2.1/catalog/datasets/2018-county-business-patterns/records?where=area_name%3D%22Orange%20County%22

https:// protocol
linc.osbm.nc.gov host
/api/explore/v2.1/catalog/datasets/2018-county-business-patterns/records path
?where=area_name%3D%22Orange%20County%22 query

Query strings

A query is a set of key-value pairs
In the example above, where is the key and area_name="Orange County" is the value
Special characters in keys and values are percent-encoded, e.g. %20 is space, %22 is a double quote, %3D is equals
- Not something you’d do manually
Multiple pairs separated by &, e.g. ?where=area_name%3D%22Orange%20County%22&select=population

HTTP verbs

There are four HTTP “verbs” (commands) used in REST APIs
- GET - retrieve information
- POST - upload information/create object (also used to retrieve information with more complicated queries)
- PUT - update information
- DELETE - remove information
Last two rarely used outside web app development

GET requests

Everything we’ve seen so far is a GET request
(Almost) all the information about the request is in the URL itself
Most of the time, this is what you’ll use to retrieve data

POST requests

POST requests are usually used (as the name implies) to post data to a server (e.g. create a new record)
In addition to the URL, there is a body which can contain any type of data
They are occasionally used to retrieve data, especially if the data has a particularly complex query

Request headers

With both GET and POST request, there are request headers - additional key-value pairs with information about the request itself
You usually don’t need to think much about these
You may occasionally need to use an Accept: header to tell the server what format to return the information in

Request headers: example

GET /datasets/2018-census HTTP/1.1
Accept: application/json

JSON

The most common format for data from REST APIs is JSON (Javascript Object Notation)
This is a hierarchical format - does not always map well onto traditional tabular data formats

JSON: example

{
  "total_count": 2628,
  "results": [
    {
      "area_name": "Orange County",
      "area_type": "County",
      "north_american_industry_classification_system_classification": "Office Furniture (including Fixtures) Manufacturing Industry Group",
      "year": "2018",
      "data_suppression_or_noise_flag": "Low Noise; Cell Value was Changed by Less than 2 Percent by the Application of Noise",
      "variable": "Total Annual Payroll ($1000) with Noise",
      "value": 5097
    },
    {
      "area_name": "Orange County",
      "area_type": "County",
      "north_american_industry_classification_system_classification": "Machinery, Equipment, and Supplies Merchant Wholesalers Industry Group",
      "year": "2018",
      "data_suppression_or_noise_flag": "Low Noise; Cell Value was Changed by Less than 2 Percent by the Application of Noise",
      "variable": "Total Annual Payroll ($1000) with Noise",
      "value": 12683
    }
  ]
}

HTTP status codes

Successful responses
- 200: OK
- 301/302: Redirects
Client errors
- 400: Bad request
- 401: Unauthorized
- 402: Forbidden
- 404: Not found
Server errors
- 500: Internal Server Error
- 502: Bad gateway
- 503: Service unavailable

Working with REST APIs in R

Live exercise

What is web scraping

Sometimes data isn’t available for download from websites
With web scraping we can use R to extract data from human-readable web pages

Ethics of web scraping

Many websites contain user content
- Facebook, Reddit, etc.
Scraping, storing, and using this data could invade privacy
- Especially when dealing with private/restricted accounts
- But even when dealing with public posts, users may not have expected it to be used systematically
- e.g. OkCupid dataset

Before you scrape

Scraping is slow, fragile, can tax web servers, and should be a last resort
Does the site you are getting data from provide an API or data downloads?
- i.e. don’t scrape twitter, reddit, etc.
Do you have any contacts there you can ask for data?

Respecting `robots.txt`

Many websites will have a robots.txt file that specifies what pages automated scraping should avoid
For instance, the New York Times

R libraries for web scraping

polite for retrieving web pages while respecting robots.txt
rvest and purrr for extracting data from web pages

What we’re scraping today

California grants portal
https://grants.ca.gov

Example code

Download from https://github.com/mattwigway/odum-webscrape

URL structure

https://www.bing.com/search?q=unc&form=QBLH&sp=-1&pq=unc&sc=8-3&qs=n&sk=&cvid=54A0FE5E1C194FC4ACB88A232A9740F9

URL structure

https://www.bing.com/search?q=unc&form=QBLH&sp=-1&pq=unc&sc=8-3&qs=n&sk=&cvid=54A0FE5E1C194FC4ACB88A232A9740F9

Protocol (HTTP or HTTPS)

URL structure

https://www.bing.com/search?q=unc&form=QBLH&sp=-1&pq=unc&sc=8-3&qs=n&sk=&cvid=54A0FE5E1C194FC4ACB88A232A9740F9

Host

URL structure

https://www.bing.com/search?q=unc&form=QBLH&sp=-1&pq=unc&sc=8-3&qs=n&sk=&cvid=54A0FE5E1C194FC4ACB88A232A9740F9

Path

URL structure

https://www.bing.com/search?q=unc&form=QBLH&sp=-1&pq=unc&sc=8-3&qs=n&sk=&cvid=54A0FE5E1C194FC4ACB88A232A9740F9

Query string (can often delete much of it)

URL structure

https://www.bing.com/search?q=unc

Structure of web pages

Web pages are coded in HTML (Hypertext Markup Language)
Structured language describing the organization and location of page elements
Can be thought of as a “tree” of tags, each tag having many branches/children

Structure of web pages

<h1>Grants</h1>
<div id="grant-results">
    <div class="grant-result">
        <a href="/grant/610712600">Clean Water Program</a>
        <span class="amount">$120,000</span>
    </div>
</div>

Finding elements in web pages

If you’re looking for a single element, often it will have an id
If you’re looking for multiple similar elements, often will have a class

Common HTML elements

div: represents a division of a web page
span: represents a (smaller) division of a web page
a: links (anchors)
h1–h6 - headings
p - paragraph
table, tr, td - a table, and rows and cells of the table

Using CSS selectors

The most common way to select elements from web pages is using CSS selectors
Many different operators that can be used in a CSS selector

CSS selectors

div - any div tag #carolina - Element with id=carolina (should be 0 or 1) .carolina - Element with class=carolina (may be many) div.carolina - div element with class=carolina .carolina.chapelhill - Element with classes carolina and chapelhill

Combining CSS selectors

Separating selectors with a space selects elements that match the second selector that are descendants of the first
- div.carolina a finds links that are inside a div with class carolina
Separating with a > finds elements that are direct children
- div.carolina a finds links that are inside a div with class carolina and not inside another tag within the div
Many more complex options, cheatsheet
In particular, :contains(word or phrase) selects elements that contain “word or phrase” .

Regular expressions: the Swiss army knife of parsing and pattern matching

Sometimes you can’t select exactly what you want - you will get what you want and a few other things as well
For instance, maybe you want the cost of an item, but in HTML it’s specified as <span>Cost: $20.00</span>
Regular expressions are a ubiquitous tool for searching for text and extracting information from strings
Regular expressions are a language for describing patterns in strings
Most programming languages support regular expressions

Regular expressions: building blocks

Regular expressions are a series of characters that match one or more characters in a source text
Most characters match themselves - all the alphanumeric characters match themselves
Metacharacters match groups of characters, or modify how other characters match

Regular expressions: metacharacters

. matches any character
[abc] is a character class matching a, b, or c
? matches 0 or 1 of previous character/character class
* matches 0 or more of previous
+ matches 1 or more of previous
\\ treats the next expression as a character rather than a metacharacter (\ in some regular expression - libraries)
^ matches start of string
$ matches end of string
\\b matches a word boundary (space, tab, etc.)

Regular expressions: metacharacters

Within a character class, - [:digit:] matches any digit - [:whitespace:] matches whitespace - [:alpha:] matches alphabetic characters (A-Z, a-z, and locale-dependent characters like ñ) - [:upper:], [:lower:] matches upper/lower case letters - [:alnum:] matches alphanumeric - [:punct:] matches punctuation

Scraping sites that use Javascript

Some sites will modify their look and feel after load using JavaScript
R does not run JavaScript but browsers do
To see a site as R sees it
- open Chrome DevTools
- press Ctrl-Shift-P (Cmd-Shift-P on Mac)
- search for and select “Disable Javascript”
- reload the page

Scraping sites that use Javascript

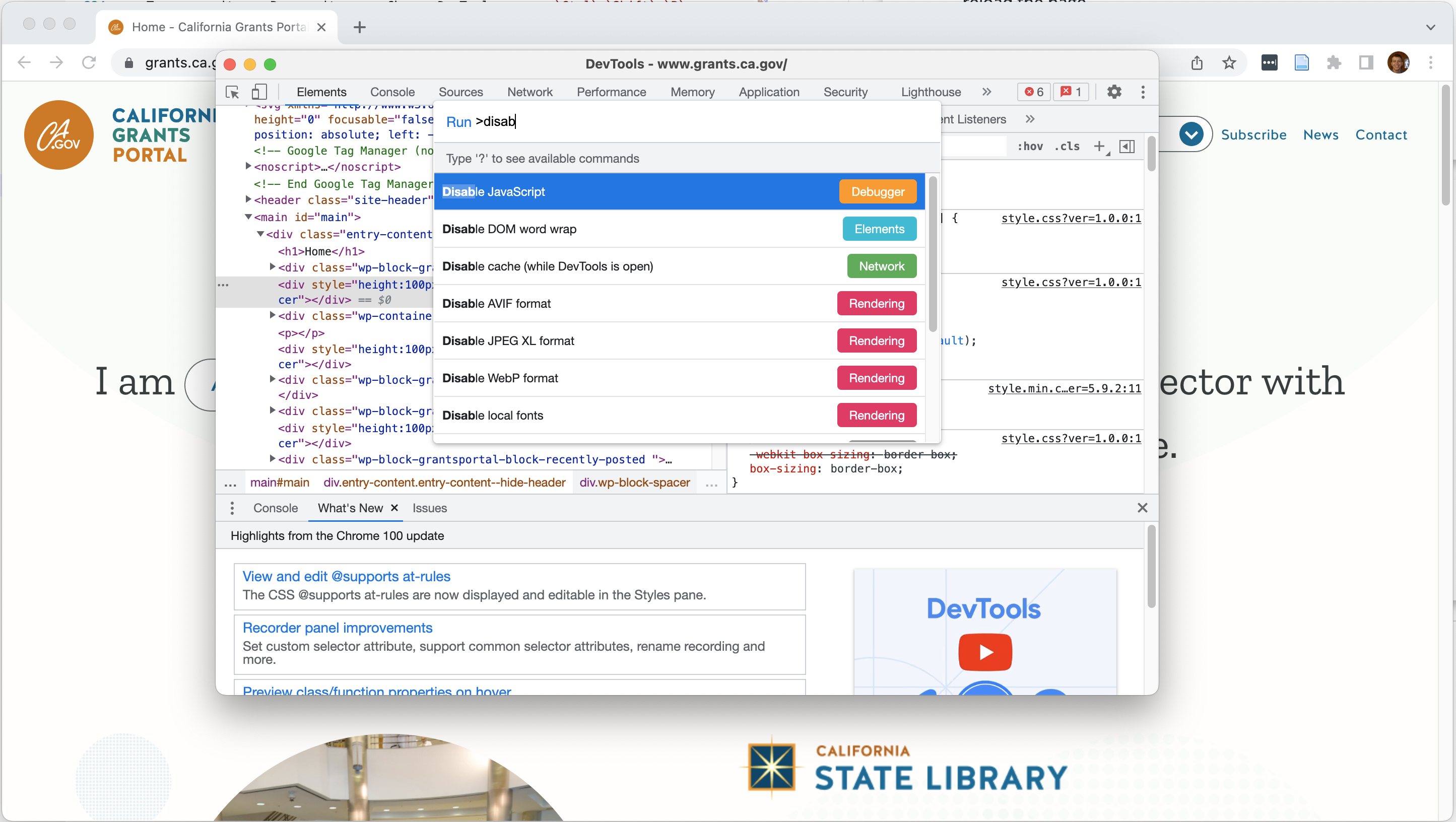

Disabling JavaScript in Chrome DevTools

Scraping sites that use Javascript

Sometimes, without Javascript the page has no content at all
Usually this means the content is being loaded over the network
You can use the network pane of Chrome DevTools to find and save the network request

The hidden REST API

Oftentimes, the page will communicate with the server using a REST API
By looking at the network pane, you can see what requests are being made
And try to “reverse-engineer” the API documentation
Same legal concerns apply
